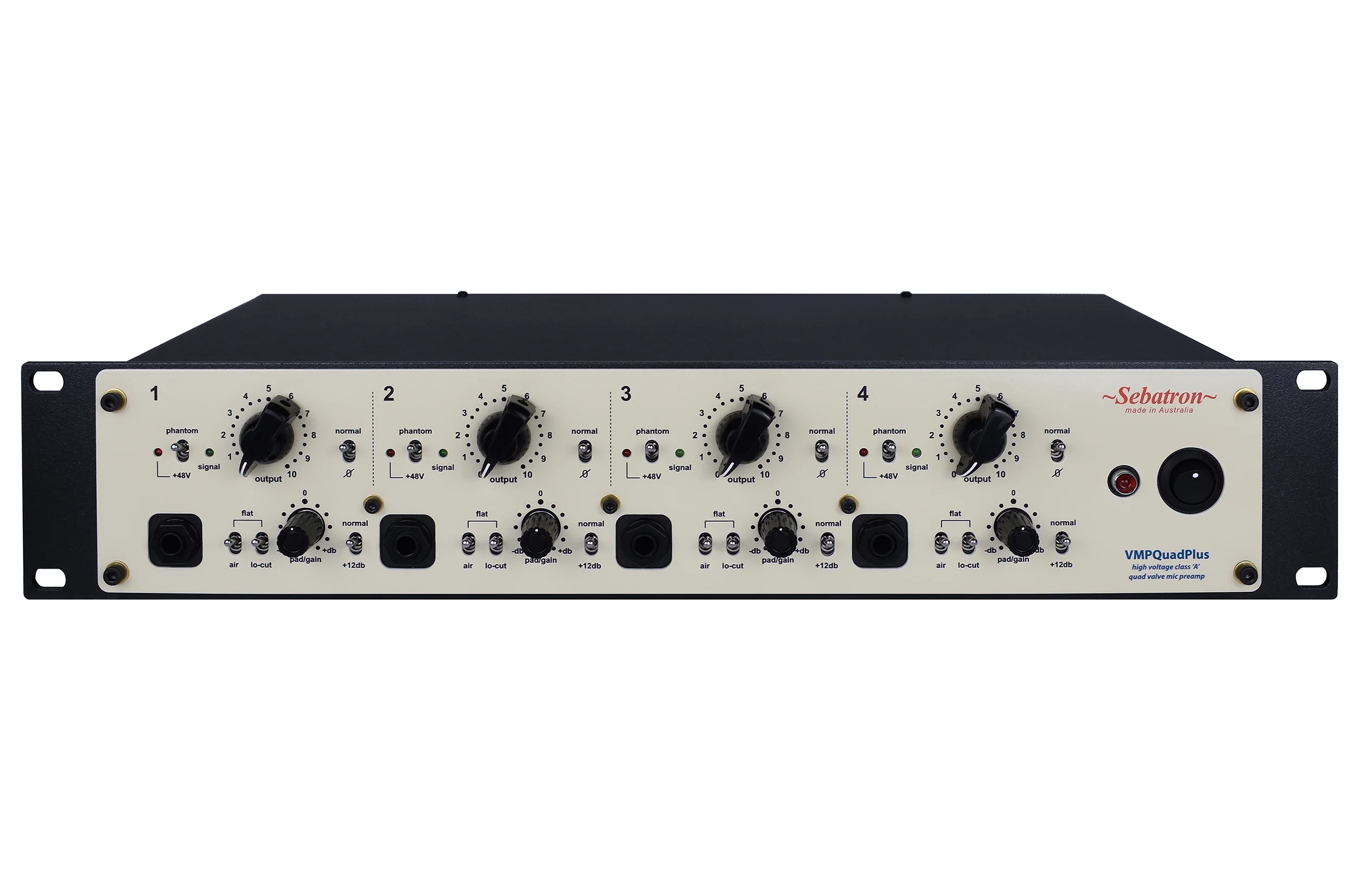

Sebatron VMPQuadPlus 4-Channel Tube Valve Mic Pre, DI + EQ
Sebatron VMPQuadPlus 4-Channel Tube Valve Mic Pre, DI + EQ
IN STOCK! FREE Shipping and 3 YEAR WARRANTY!
Use Coupon Code “SEBATRON” in checkout to save an ADDITIONAL 10% off the Sale Price!
If you're the type of engineer/producer that prefers a bit more control over the degree of colouration in the signal then it might be a good idea to check out the Sebatron VMPQuadPlus.
The VMPQuadPlus is very similar to the Sebatron VMP-4000e in the sense that it is a four channel valve microphone preamplifier with the majority of the circuit being almost identical. The differences account for a slightly broader frequency response, a few db of extra gain and a lower reaching bottom but in most recording contexts the differences may be barely perceivable.
HIGHLIGHTS
Transformer balanced microphone input
Totally discrete Class A circuit
Two band passive switchable EQ
Totally Adjustable pad/gain control with +12db gain boost switch for more colour
12AT7 vacuum tube run at a proper high tension providing all of the active gain
Signal LED on each channel
Solid state output stage powered by a high voltage rail for superior headroom and transient response
DC filament rail for low noise operation
The omission of the 'deep' circuitry accounts for the extra db in gain and allows for the inclusion of the pad/gain control to further push the limits and fine tune valve colouration. This adjusts the level in between the two stages of the triode/valve leaving the normal/+12db toggle to adjust the degree of negative feedback around the first stage similar to the 4000e toggle.
In the 'normal' position a slight amount of negative feedback linearizes the first stage and makes it run more transparently whereas in the +12db position the circuit runs in 'open loop' with a pleasing coloured texture.
This allows for a very wide gain range and means the VMPQuadPlus can handle everything from hot Condensers to lightweight Ribbon signals without the use of external pads or lifters.
Other differences include the addition of a front panel face plate that improves shielding and provides some protecton to the toggle switches and a signal LED on each channel to indicate channel activity.
If your recording requirements extend beyond recording drum kits and other rock styled instrumentation and you desire more control over valve colour then the Sebatron VMPQuadPlus may be suited to your needs.
SPECIFICATIONS
Gain: 70db per channel
Frequency response: 20hz-110khz +/- 3db 'air' on
Mic input impedance: 1K ohm
Direct Input impedance: 1M ohm
Maximum input: +10dbu mic ,+16dbu direct
Maximum output level : +30dbu
Noise (EIN): -126db
Mains power input:~110/120 or ~220/240
Current : 0.8a ~220/240 or 1.6a ~110/120
Dimensions: 482mmX190mmX89mm (W-D-H)
Weight: Approx. 6kg.
