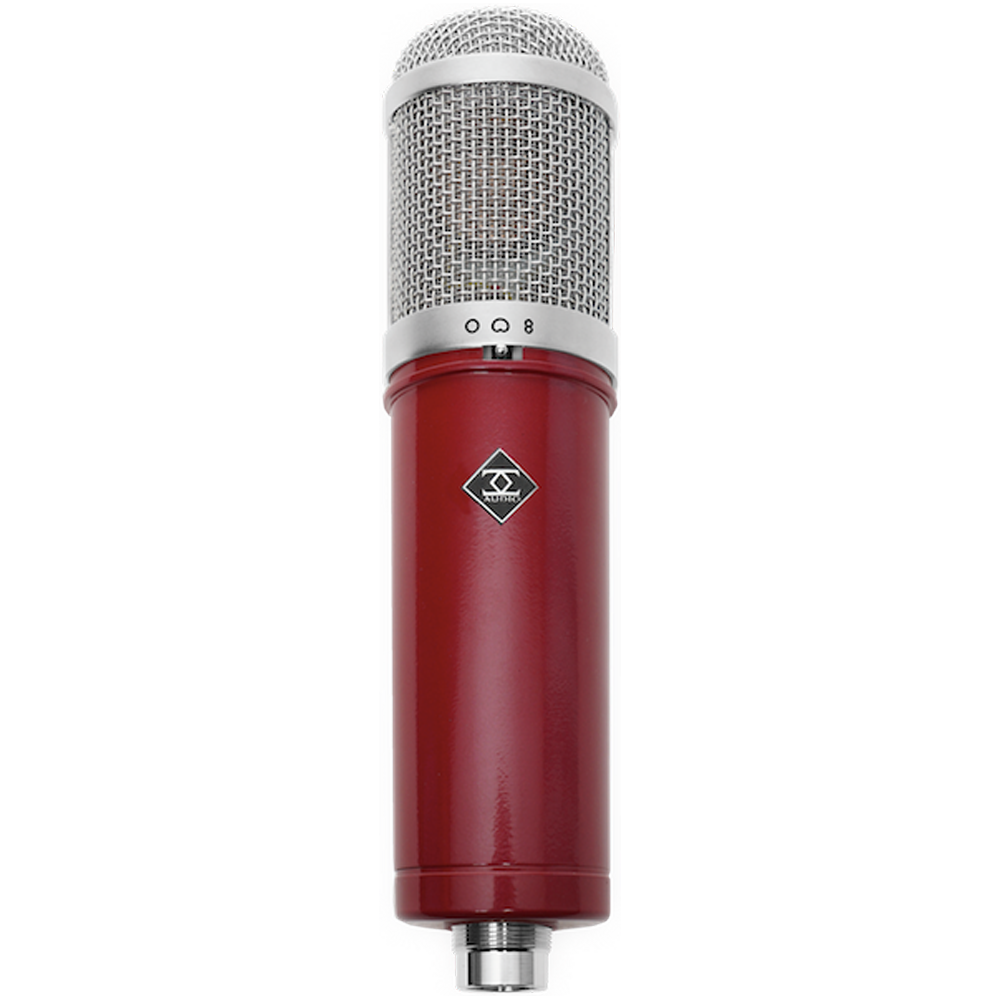

ADK VIENNA-12 T SPECIFICATIONS

The ADK Custom Shop Vienna 12-T Microphone is the most brilliant of all ADK Custom Shop FET microphones. It has an almost effervescent high-end. It is a tri-polar microphone with selectable Cardioid, Figure-8, and Omni pickup patterns. The Vienna 12 model is based on a unique FET circuit that saturates gradually (unlike most condenser microphones which tend to clip abruptly). The microphone boasts an Australian-designed capsule, British Oxford transformer, hi-end Phillips Norelco uber-FET. Manufactured with methods and materials usually found with hi-fi equipment, including even a $6 resistor – expensive considering most resistors cost just a few pennies each. It took three microphone experts including a Ph.D. in Physics, a design genius in Belgium and a 40-year-old microphone collection to create it! Add two-way attenuation pads (8 and 16 dB) to enable end-user to tailor the dynamic behavior of the microphone to the situation and obtain new textures, with rarely the need for outboard processors or even equalization.

All Class-A F.E.T. design manufactured in 3 Zigma Aerospace Manufacturing facility with British Oxford Transformer, and premium quality Low-Noise 3 Zigma capsules with Vintage Voicing Curves. The audiophile circuitry differs from lesser-designs in that it is designed for Soft-Saturation at extremely high SPL as instead of going into the “crunch” and unpleasant distortion (not the good kind of distortion!) of hard-clipping.

ADK Custom Shop Vienna 12-T Microphone Includes

• Wood Jewel Box

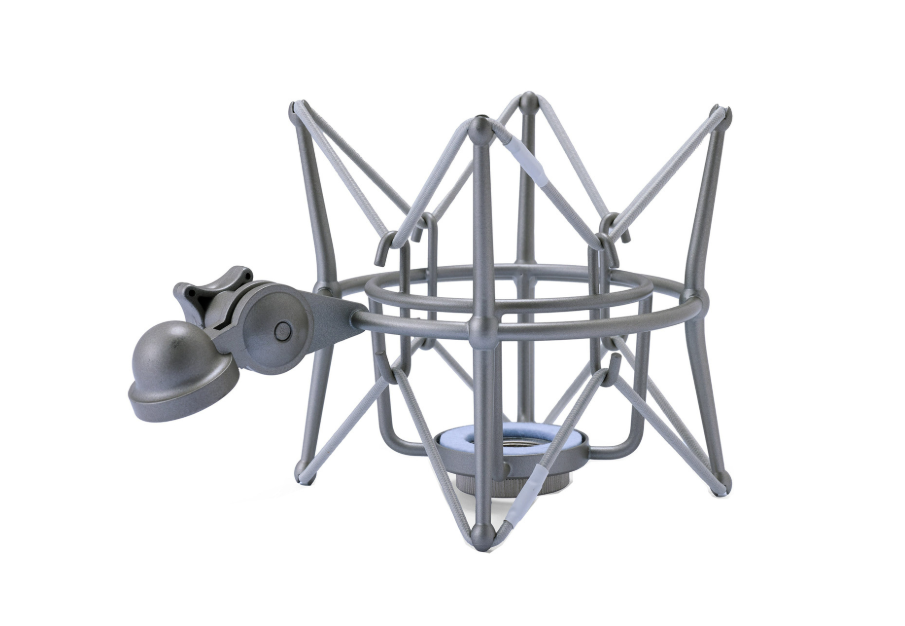

• Ring Mount

ADK Custom Shop Vienna 12-T Microphone Specifications

• Acoustical operating principle: 27.5mm large diaphragm pressure gradient transducer

• Directional pattern: cardioid

• Frequency range: 20Hz~20kHz

• Sensitivity: -35dB (17.8mV/Pa)

• Output impedance: 200 ohms

• Equivalent noise A-weighted: 11 dB

• S/N ratio (A-weighted, rel 1Pa): 83dB

• Maximum SPL: 136dB with 16dB pad

• Dynamic range: 125dB

• Supply voltage: 48 volts (P48)
